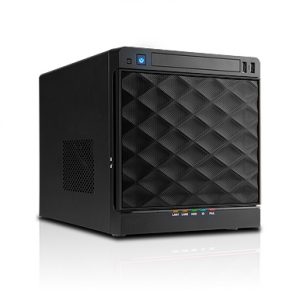

IW-MS04

Features:

  • Mini-SAS Backplane (6GB/s supported)
  • Unique server design ideal for small office
  • Flex ATX power supply supported
  • Slim ODD supported
  • Front access USB 3.0 x 2 Ports

Description

Home Server / NAS application Chassis

Specifications:

Case dimension275mm W x 210mm D x 230mm H
Motherboard configurationMini ITX  (M/B Cooler Max. 65 mm)
SecurityIntrusion Switch, Padlock Loop, Kensington Lock
Drive configuration
  • External: Slim ODD x 1, Hot-Swap 3.5" x 4 or 2,5" x 4

  • Internal: 2.5" x 2 (One for option)
Metal MaterialSECC
Plastic Material TypeABS-HB
Metal Thickness0.8mm
System cooling fans120 x 25mm PWM Cooling fan
Expansion SlotLow profile Slot x 1
Front PanelPower Switch, System reset, USB 3.0 x 2
Net Weight/Gross Weight5.31kg/6.33kg
Power SupplyFlexATX 265W PSU built-in
