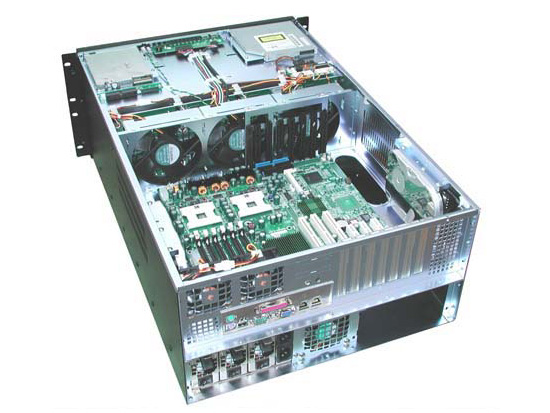

GHI-580 Guanghsing 19″/5U Rackmount

Features:

  • Guanghsing 19″ 5U Rackmount Case
  • 7 Slots
  • 2 x USB
  • Power ON/OFF, System Reset, Buzzer Reset
  • LEDs for Power ON/OFF, HDD, Fan, Temperature, LAN Activity
  • Flexible Hold Down Card
  • The very storage capable ORCA 24, can handle up to 24 swappable bays
  • With current drives capacities up to 400GB per drive, this drive can handle up to 9.6 terabytes of raw storage.
  • Single Door with 2 Thumbscrews (Removable)
Categories: , Tags: ,

Description

Specifications:

Case dimension483mm W x 650mm D x 222mm H
Motherboard configurationEATX (Max. 12" x 13") SSI EEB 3.0
Drive configuration
SATA Backplane (Standard)
  • 1 x Slim 5.25"

  • 1 x Slim 3.5" FDD

  • 24 x 3.5" Swappable Trays

  • 2 x 2.5" HDD
System cooling fans3x (120mm = 90CFM ea.), 1 x (80mm = 42.5CFM ea.), 2 x (60mm = 23.5CFM ea.)
Thermal Management CardGHA-CO04
Gross Weight33.5 kgs / 73.9 lbs
Optional Power SupplyMX3-6600P (2x Mini Redundant PSU up to 600W) (Rear Installation), Max Depth 275mm
Optional KitsTelescopic Sliders
