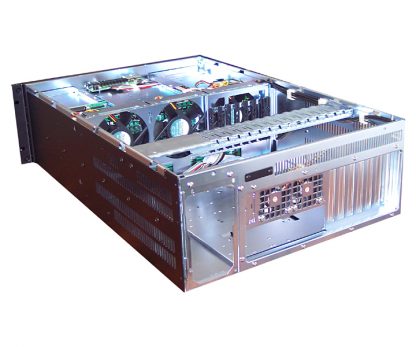

GHI-480 Guanghsing 19″/4U Rackmount

Features:

  • Guanghsing 19″ 4U Rackmount Case
  • 7 Slots
  • 2 x USB
  • Power ON/OFF, System Reset, Buzzer Reset
  • LEDs for Power ON/OFF, HDD, Fan, Temperature, LAN Activity
  • Flexible Hold Down Card

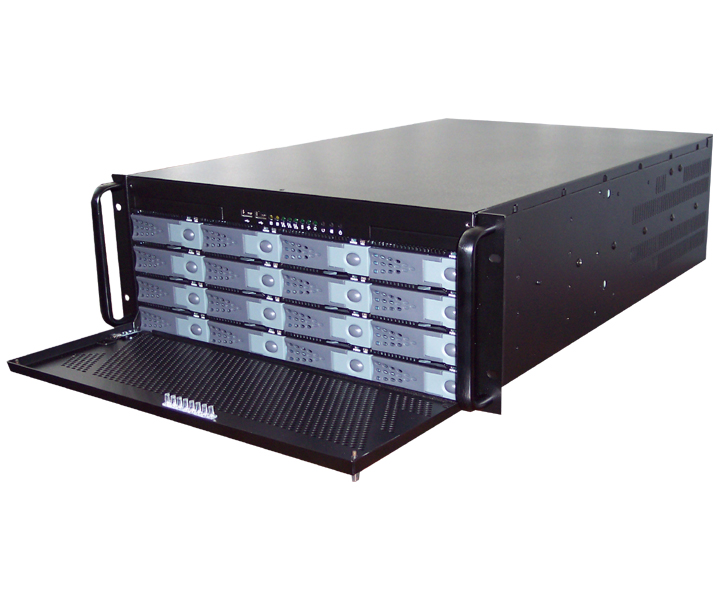

  • Single Door with 2 Thumbscrews (Removable)
Categories: , Tags: ,

Description

Specifications:

Case dimension483mm W x 650mm D x 177mm H
Motherboard configurationEATX (Max. 12" x 13") SSI EEB 3.0
Drive configuration
SATA Backplane (Standard)
  • 1 x Slim 5.25"

  • 1 x Slim 3.5" FDD

  • 16 x 3.5" Swappable Trays

  • 2 x 2.5" HDD
System cooling fans3x (120mm = 90CFM ea.), 2 x 6cm (Optional)
Thermal Management CardGHA-CO04
Gross Weight28.0kgs / 61.7lbs
Optional Power SupplyR3G-5800P4V (N+1 Redundant PSU up to 950W) (Rear Installation)
Optional KitsTelescopic Sliders
