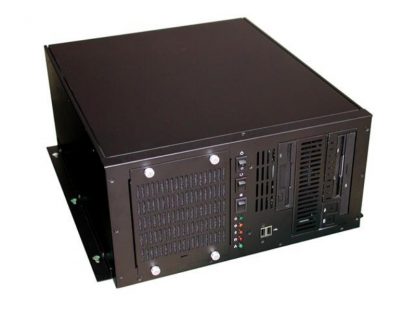

GHB-081 Guanghsing Wallmount

Features:

  • Guanghsing Desktop or Wall Mount
  • Heavy Duty Cold Rolled Electroplated Steel
  • Power ON/OFF, System Reset, Buzzer Reset
  • LEDs for Power ON/OFF, HDD Activity, Temperature, Fan, LAN
  • Washable Air Filter
Categories: ,

Description

Specifications:

Case dimension350mm W x 411mm D x 177mm H
Mainboard configurationSupport EATX M/B (12" x 10.5") SSI EEB 3.0
Drive configuration
  • 2 x 5.25" (160mm)

  • 1 x 3.5" FDD

System cooling fans1x (120mm= 90CFM) With Removable Air Filter Fan
Expansion Slots7x Slots
Connector Port (Front)2x USB Ports
Air FilterInside Front Panel (Washable)
Thermal Management CardGHA-CO04
IndicatorsLEDs for Power ON/OFF, HDD Activity, Fan, Temperature, LAN
Hold Down BarFlexible Hold Down Bar Designed
SwitchPower ON/OFF, System Reset, Buzzer Reset
Gross Weight12.9 kgs / 28.5 lbs
Optional Power Supply1U Single up to 500W ATX P/S(Mid Installation) Max. Depth 190mm<7a>
